NV320320AM163#P01
| Size: | 1.63" |
| Colors: | 16.7M |
| Resolution: | 320xRGBx320 |
| Interface: | MIPI DSI |
| Touch Panel: | CTP |
| Frame: | NO |
| Module Size: | 35.92(H) × 44.07(V) × 2.375(T) mm |
| Active Area: | 29.28 (H)×29.28(V) mm |
| Brightness: | 300 nits |
| Operating Temp.: | -40~80 °C |
Features:
- Panel + Capacitive Touch Panel
- Super Slim
- High Reliability
- Sunlight Readable
- Fast Response Time
- Low Power Consumption
- Wide Operation Temperature
- High Brightness & Extreme Contrast

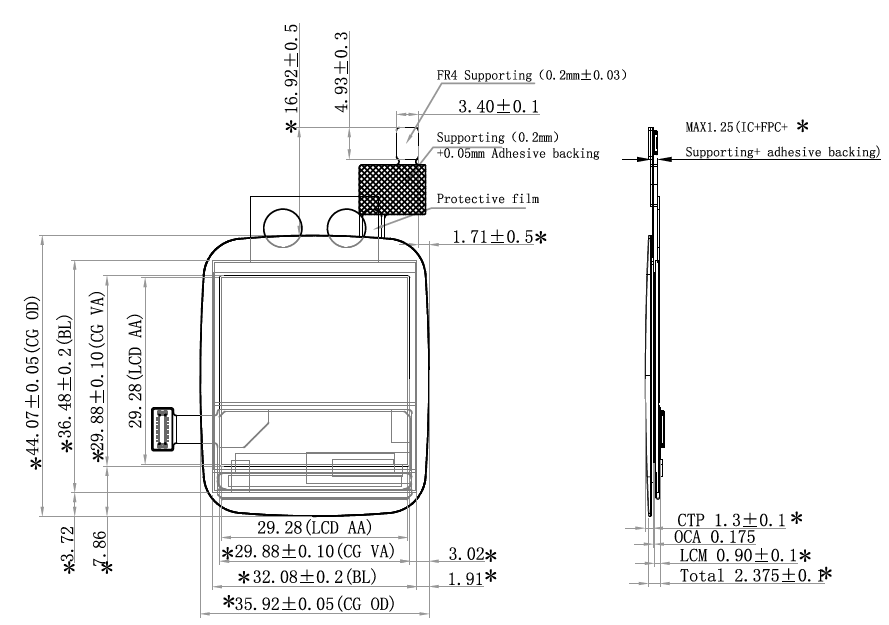

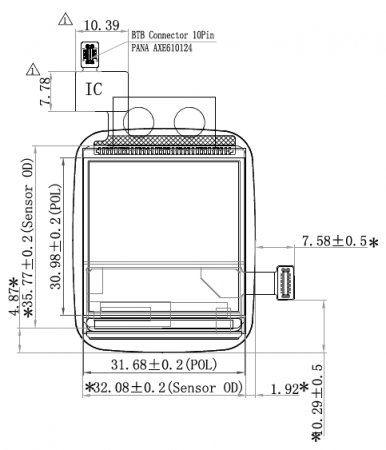

Drawing:
Data Sheet:
